The Mill B. 233-Rembrandt van Rijn

TECHNICAL DATA

Figure 1. Full view of the print
Overall view of the impression showing the complete composition, tonal balance, and preserved margins.

Figure 2. Full reverse (transmitted light)
Reverse of the sheet under transmitted light, revealing the paper structure, chain lines, and evidence of press pressure corresponding to the original plate.

DIAGNOSTIC OVERVIEW

This section details the physical condition and technical state of the work based on direct observation of its material and structural components.

• Support Integrity and Dimensions:
  The work is presented on a rag paper support measuring Height 245 mm × Width 320 mm. The sheet dimensions exceed the plate area Height 145 mm × Width 206 mm, allowing for the full preservation of the original margins and the evidence of press pressure.
• Morphology of the Platemark:
  A sharp and continuous plate mark is observed, clearly visible in fig 2.jpg. The depth and relief of this impression confirm a print executed under significant mechanical pressure, characteristic of seventeenth-century manual rolling presses.
• Condition of the Plate Surface:
  Microscopic examination reveals a plate with minimal mechanical wear. The presence of active burr in the drypoint lines—particularly visible under raking light in Specular reflection burr indicates that the matrix retained its original metallic ridges at the time of printing.
• Atmospheric and Tonal Definition:
  The impression preserves high fidelity in its most delicate passages, including the micro-figures and the reflections in the water. This retention of fine detail suggests that the plate had not undergone abrasive cleaning or excessive print runs, processes that typically erode the most subtle elements of the original 1641 design.
• Organic Characterization:
  The support exhibits a natural aging patina, with structural stability consistent with the manufacturing methods of the period, as identified in the paper analysis.

TECHNICAL DATA & METHODOLOGY

The technical analysis of this impression has been structured through a comparative macro-identification protocol designed to verify the authenticity of the imprint and the integrity of the copper plate engraved in 1641. Unlike a standard visual examination, this methodology focuses on the physics of ink transfer, in which the interaction between metal and rag paper fibers functions as an irreproducible biometric fingerprint.

The rigor of this study is grounded in the observation of three critical phenomena, characteristic of so-called life impressions:

1. Three-dimensionality of the pigment, documented through raking light.
2. Autonomy of the microscopic line, verified in micro-figures and hatching.
3. Capillary integration of the ink, observable in the signature and date.

I. Specular Reflection Analysis and Active Burr
Through the capture Specular reflection burr, the three-dimensional relief of the ink is documented. Raking light reveals that the saturation of the blacks is not flat, but originates from an intact drypoint burr that projects physical micro-shadows onto the paper fibers.

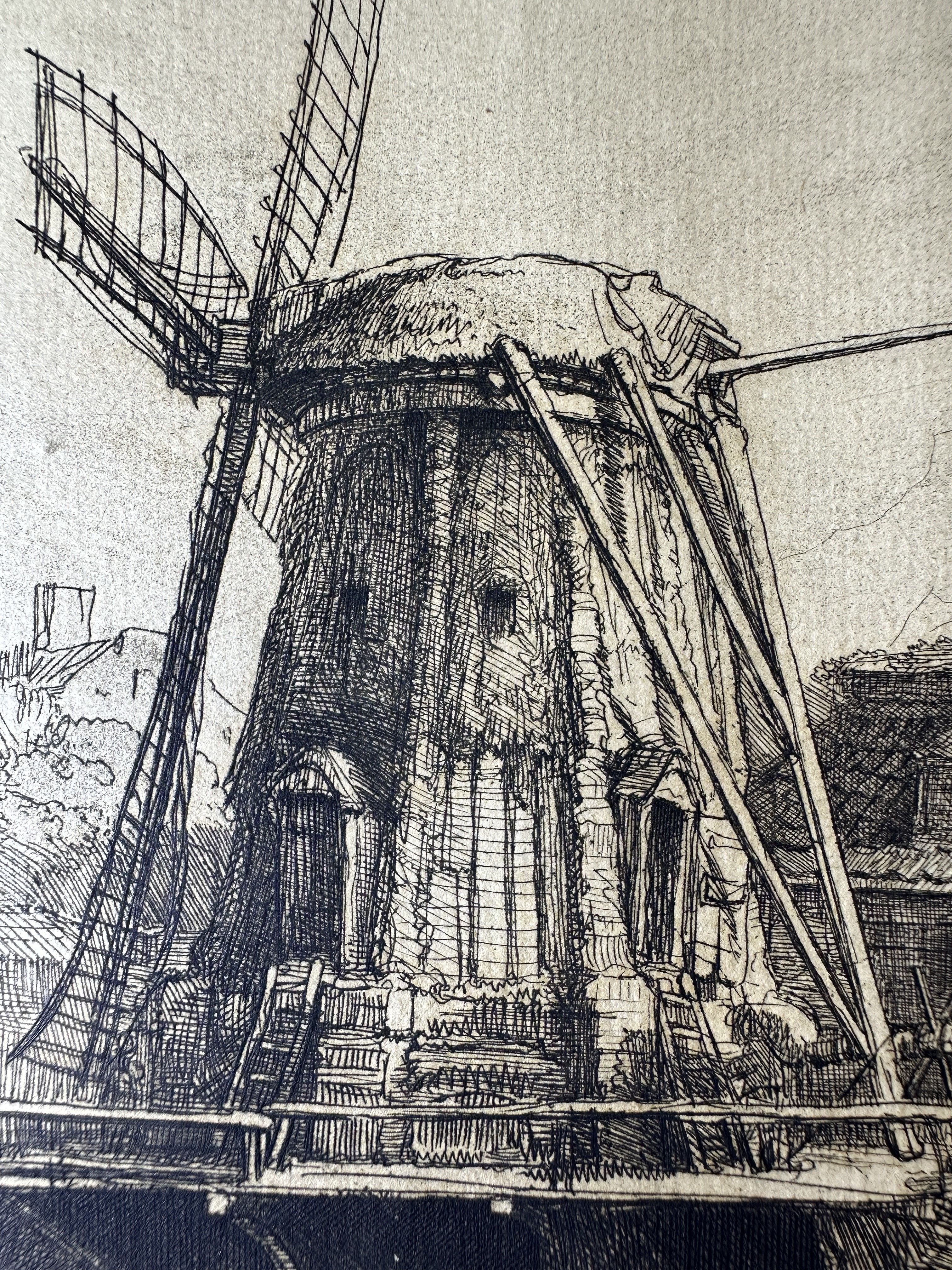

II. Structural Integrity of the Mill Sails
Macro detail of the mill blades showing intact linear intersections and preserved edge definition. The absence of rounding, collapse, or obstruction at the crossing lines does not indicate wear on the copper plate and confirms a high-fidelity intaglio print from an initial plate.

III. Micro-Architecture of the Linear Structure
Macro detail revealing the architectural organization of the engraved line system. The preserved independence of adjacent strokes, visible paper intervals between lines, and consistent groove geometry indicate a clean, unworn plate and a controlled intaglio printing process.

IV. Analysis of Hatching and Tonal Vibration
Macro detail analyzing the hatching system and the resulting tonal vibration. The preserved autonomy of each engraved line generates an optical modulation in the shaded areas, confirming the manual execution of the intaglio printing process.

V. Definition of Micro-Figures
The ultrafine lines of the Macro Burr print depict human figures rendered at a millimeter scale with exceptional shorthand definition. The preservation of these extremely fine lines is consistent with an early stage in the plate's life, as these details are among the first to erode with repeated use.

VI. Linear Dynamics in the Water
The presence of filiform lines is documented at the base of the composition. The sharpness of these lines, without fading or interruption, is consistent with a maximum retention of the artist’s original graphic intention.

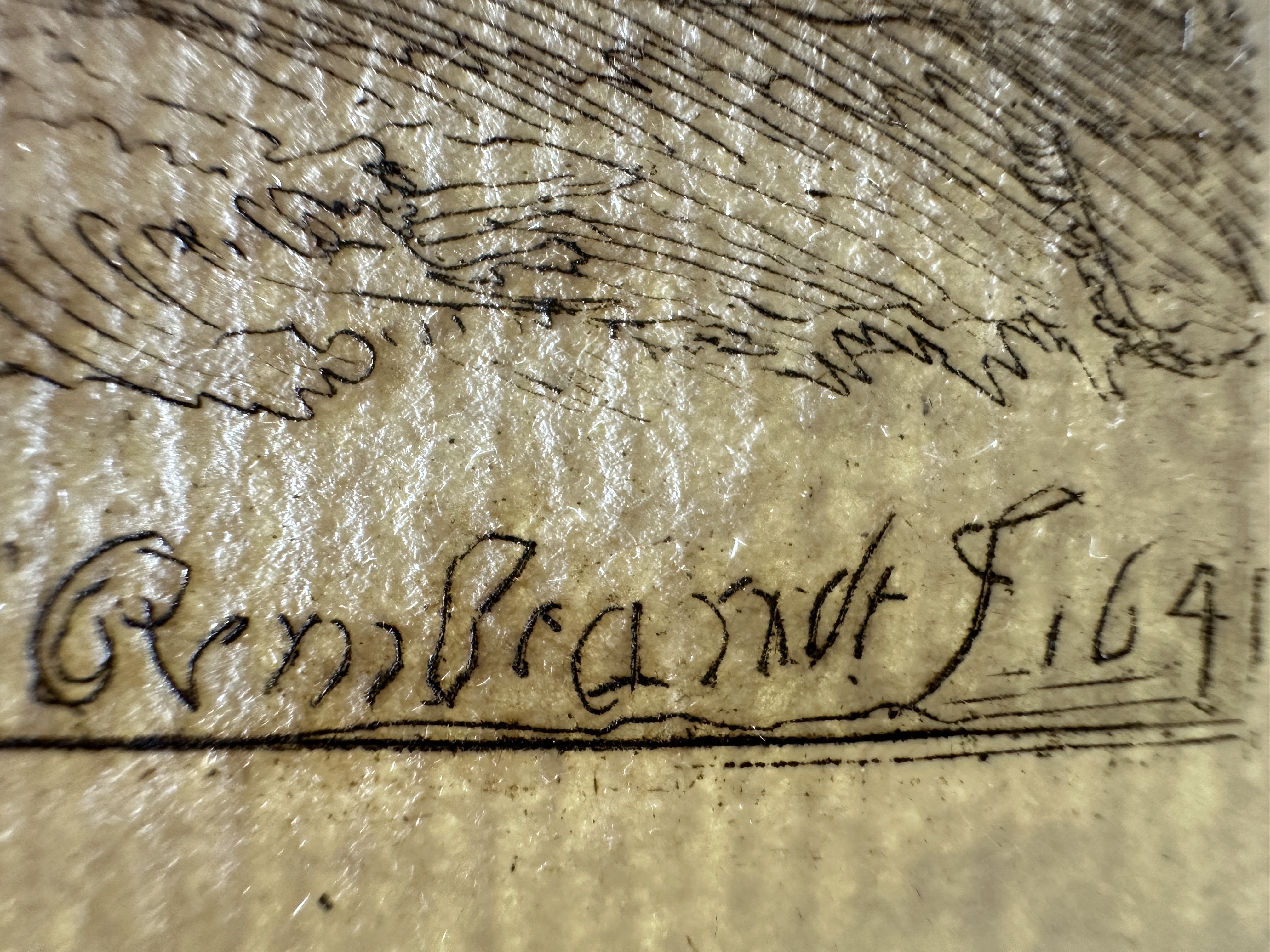

VII. Calligraphy and Morphology of the Signature (1641)
The signature and date at macroscopic resolution. Capillary integration of the pigment into the rag paper is clearly observable, with the ink penetrating the fiber rather than resting superficially on the surface. The morphology of the characters corresponds to the artist’s calligraphic standards of this period and displays variable stroke pressure, a feature only compatible with direct manual incision into copper.

I. Specular Reflection Analysis and Active Burr

II. Structural Integrity of the Mill Sails

III. Micro-Architecture of the Linear Structure

IV. Analysis of Hatching and Tonal Vibration

V. Definition of Micro-Figures (Narrative Integrity)

VI. Linear Dynamics in the Water

VII. Calligraphy and Morphology of the Signature (1641)

Conclusion

The convergence of these seven lines of evidence—ranging from the physical relief of the burr to the preservation of shorthand micro-figures—demonstrates full technical coherence with the production standards of Rembrandt van Rijn. No morphological anomalies or indications of photomechanical reproduction are identified; on the contrary, the presence of active filiform lines and extremely fragile strokes places this impression within the highest documented range of historical printing quality for The Mill.

Paper Watermark

The coexistence of the PvL.a countermark and the active presence of drypoint burr is interpreted through the physical principles of intaglio printing described by Ad Stijnman (2012), who establishes that drypoint burr is a physically fragile microstructure with a short lifespan within the working cycle of a plate.

I. Fragility of drypoint burr
According to Stijnman (Engraving and Etching 1400–2000), the copper burr raised by the needle degrades rapidly under repeated pressure and through physical and chemical effects associated with plate handling (rolling-press pressure, cleaning, and environmental oxidation).
Technical conclusion: The presence of sharp, structurally active burr in the micrographs presented in Point 4 is consistent with an impression printed during an early phase of the plate’s life.

II. Chronological implication for PvL.a paper
If a sheet bearing the PvL.a countermark retains active burr, this suggests that the corresponding paper batch was available and in circulation at a moment compatible with an early printing phase of the plate. The WIRE reference (HMP 234985.b) and the chain-line measurement (29.04 mm) provide the comparative framework for this identification.
Methodological note: The official registration of the mill in 1665 does not, by itself, exclude the possibility of earlier circulation of molds or paper batches, particularly within artisanal production contexts.

III. Evidence of a “life impression” (ink–fiber technical interaction)
Stijnman notes that a paper’s ability to receive intaglio ink with physical relief and to retain fragile details depends on technical conditions of the support (preparation, dampening, and sizing). In this impression, the integration of ink into the paper fibers—visible under magnification—is consistent with an original intaglio printing process in which the support captured the groove relief without collapsing the microscopic readability of the burr.

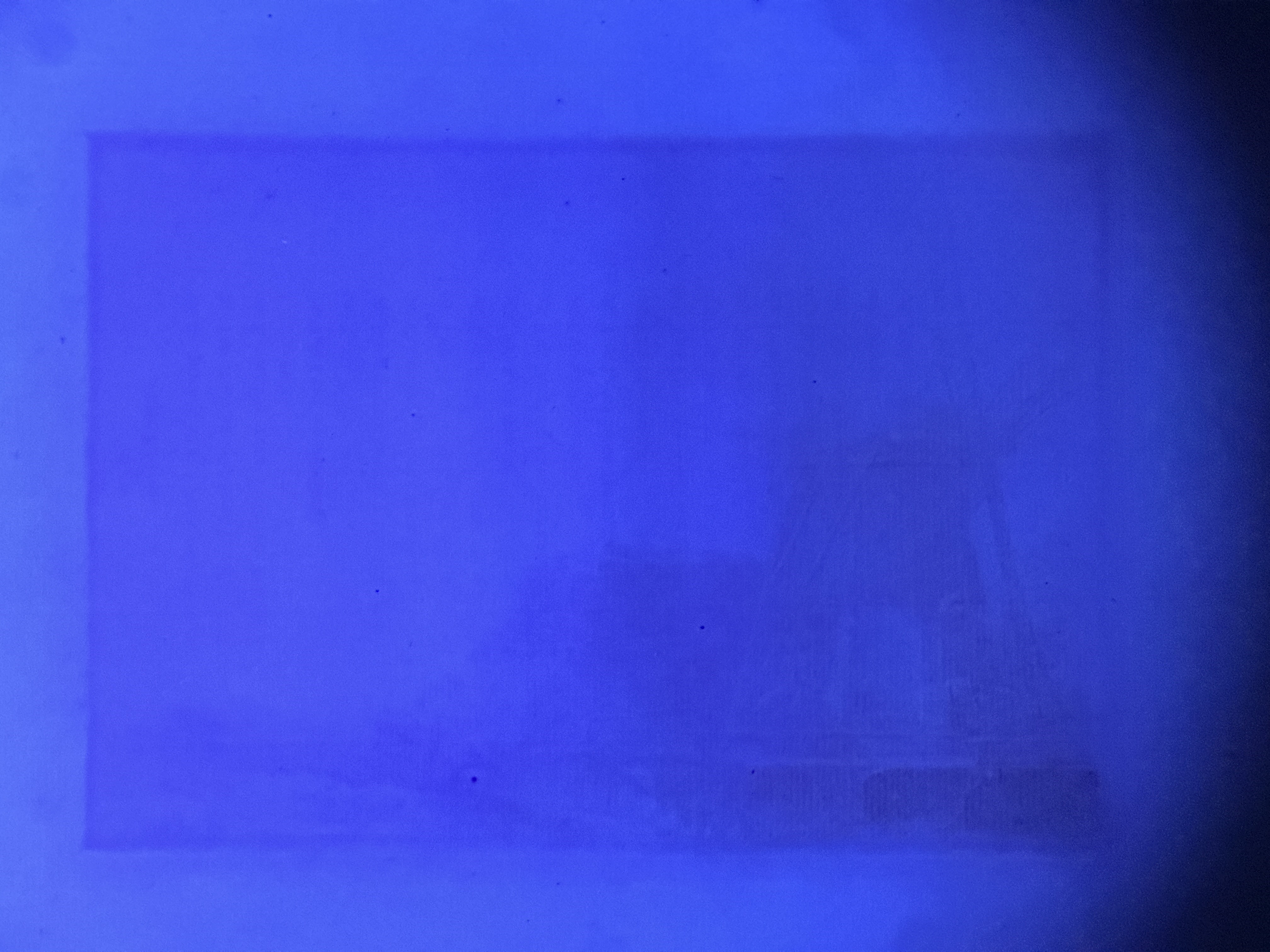

IV. Reverse under ultraviolet illumination (low intensity).
The paper exhibits a homogeneous fluorescence consistent with historic rag paper, with no evidence of modern optical brighteners, localized restoration, adhesives, or reinforced areas. the platemark appears as a continuous zone of altered fiber density, consistent with mechanical pressure from intaglio printing.

V. Physical properties of the paper support.
The sheet measures 37 × 24 cm and weighs 9 g, corresponding to an approximate density of ~101 g/m².

This value falls squarely within the documented range of 17th-century laid rag papers used for intaglio printing, and is fully consistent with the observed fiber structure, thickness, flexibility, and response to printing pressure.

Associated visual evidence (support set)

• Full sheet in transmitted light: reveals the paper’s structure and the overall coherence of the support.
• PvL.a watermark/countermark: macro capture of the mill identifier.
• Watermark height and width: metric record for catalogue validation.
• Chain lines (29.04 mm): comparative metric consistent with WIRE HMP 234985.b.
• Paper fibers under the microscope: ink integration in the support and the organic structure of the paper.

Full sheet / PvL.a watermark

Chain lines (29.04 mm)

Watermark height

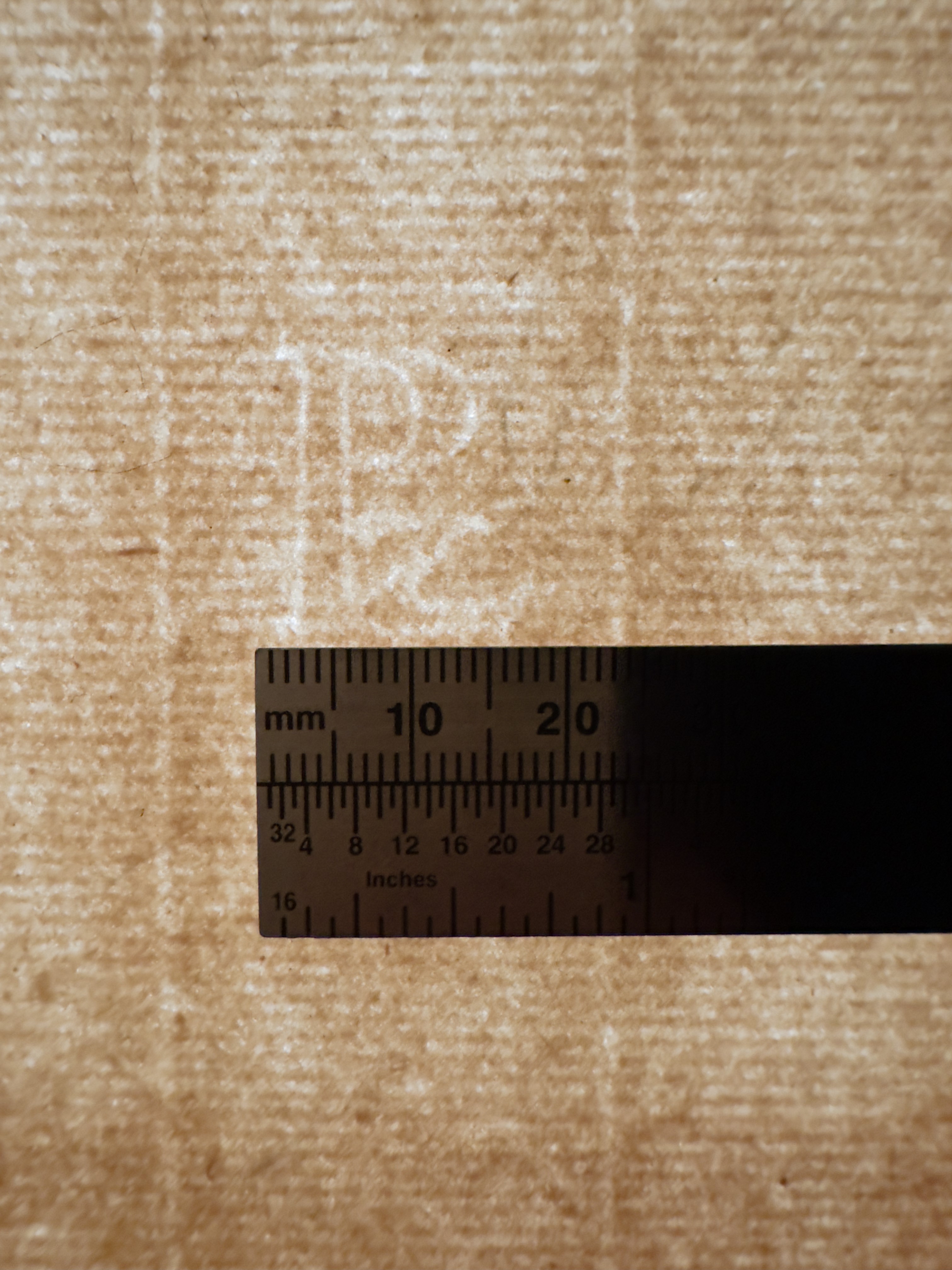

Watermark width

Paper fibers under the microscope

Reverse under ultraviolet illumination (low intensity).

MICROSCOPIC LINE ANALYSIS

This analysis focuses on the biometric characteristics of the engraved line in order to confirm manual execution by etching and drypoint, and to conclusively exclude any modern photomechanical, heliographic, or digital process. Microscopic examination makes it possible to observe physical features that can only be produced through the direct interaction between tool, matrix, ink, and paper in a historical intaglio process.

1. Saturated Filiform Burr (Active Drypoint)

Microscopic detail showing saturated filiform burr with raised ink accumulation along needle-raised copper ridges. The preserved autonomy of the filiform lines and the physical ink relief confirm early-state dry point printing.
The lines exhibit organic variations in thickness. A fine initial attack, a progressively saturated body, and a needle-like termination can be observed. This sequence is characteristic of variable hand pressure exerted by the engraver and of the direct contact between a steel point and the copper plate, and cannot be replicated by mechanical or photographic processes.
• Ink Capillarity:
  Radial migration of the ink’s oil binder into the paper fibers is clearly visible. This phenomenon of controlled absorption occurs only in historic papers sized with animal gelatin and is incompatible with toners, offset inks, or modern printing systems, which remain superficially deposited on the support.

2. Velvety Black Drypoint Burr

Microscopic detail showing velvety drypoint burr with active hatching. The ink accumulates against raised copper ridges, producing soft, diffuse line edges and deep tonal saturation. The preserved independence of the engraved lines and the physical deformation of the paper confirm an early-state intaglio impression printed from a minimally worn plate.
• Velvety Effect:
  The ink does not merely occupy the engraved groove but accumulates against the microscopic copper ridges raised by the needle. This produces a line with a slightly diffused and visually rich edge, regarded as a diagnostic hallmark of impressions printed during an early phase of the plate’s life.
• Independence of Lines:
  Even in areas of deep shadow, the engraved lines retain their individual identity under magnification. No blind clogging or collapse of the grooves is observed, indicating that the plate was in an optimal state of preservation at the moment of printing.

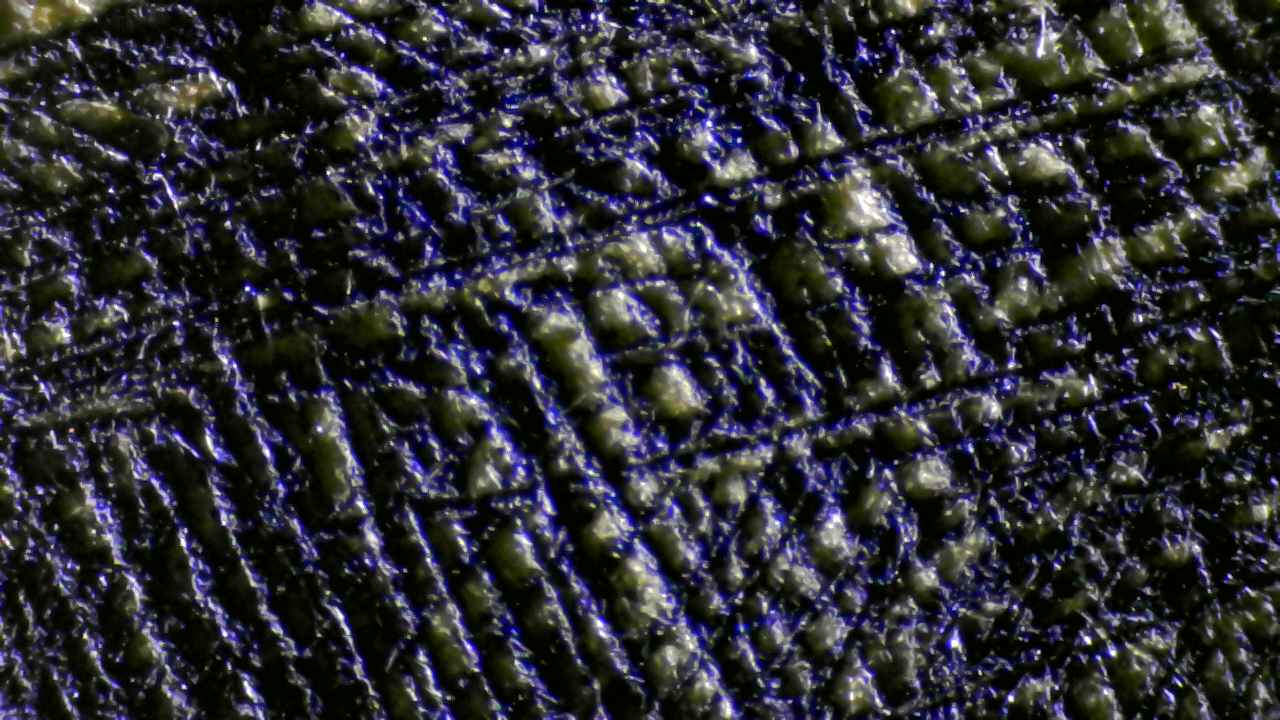

3. Deep Intaglio Burr — Active Hatching Structure

Microscopic detail showing deep-relief intaglio burr with active cross-hatching. The preserved independence of the engraved lines, combined with volumetric ink retention and physical paper deformation, confirms early-state calcographic printing from an unworn plate.
• Physical Relief:
  Observation under lateral illumination reveals a tangible relief of the ink. The paper has been forced into the engraved grooves by the pressure of the rolling press, generating a three-dimensional structure that can only be produced by original intaglio printing.
• Pigment Patina:
  The carbon black particles exhibit a natural chromatic degradation toward warmer, matte tones, consistent with the long-term oxidation of historic drying oils such as seventeenth-century linseed oil. This patina contrasts with the flat, uniform appearance characteristic of modern industrial inks

4. Active Filiform Drypoint Burr -Signature “R

A microscopic view of the initial “R” in Rembrandt’s signature shows a continuous, threadlike drypoint burr preserved along the upper edge of the incised stroke. The burr remains physically attached to the copper groove and retains ink as a raised, three-dimensional ridge, with localized capillary penetration into the paper fibers.

This configuration demonstrates the direct action of the drypoint on copper at an early stage of printing, prior to significant burr collapse or mechanical flattening.


Saturated Filiform Burr (Active Dry point)

Velvety Black Drypoint Burr

Deep Intaglio Burr — Active Hatching Structure

Active Filiform Drypoint Burr -Signature “R

Conclusion

Taken together, the microscopic observations demonstrate complete structural coherence between groove, burr, ink, and paper. This coherence excludes any photomechanical reproduction process and confirms authentic manual execution corresponding to an original intaglio impression printed during an early stage of the plate’s use.

DIGITAL OVERLAY & MUSEUM COMPARISON

Using Computer-Aided Geometric Alignment (CAGA), an absolute morphological correspondence with the standard 1641 plate has been confirmed. This geometric congruence establishes that the print was made from the original copper plate.

This section presents a direct digital comparison between Álvarez de El Molino's private print (green lines) and the catalogued reference print held at the Rijksmuseum, inv. RP-P-1962-90 (black lines). Through structural overlays and controlled area analysis, the identity of the copper plate and the state of preservation of the print are examined.

Structural Superposition (Digital Overlay)
Using Overlay.1.1.jpg and Overlay Estructura.1.jpg, a comparative transparency was performed against the Rijksmuseum’s catalogued impression (inv. RP-P-1962-90).

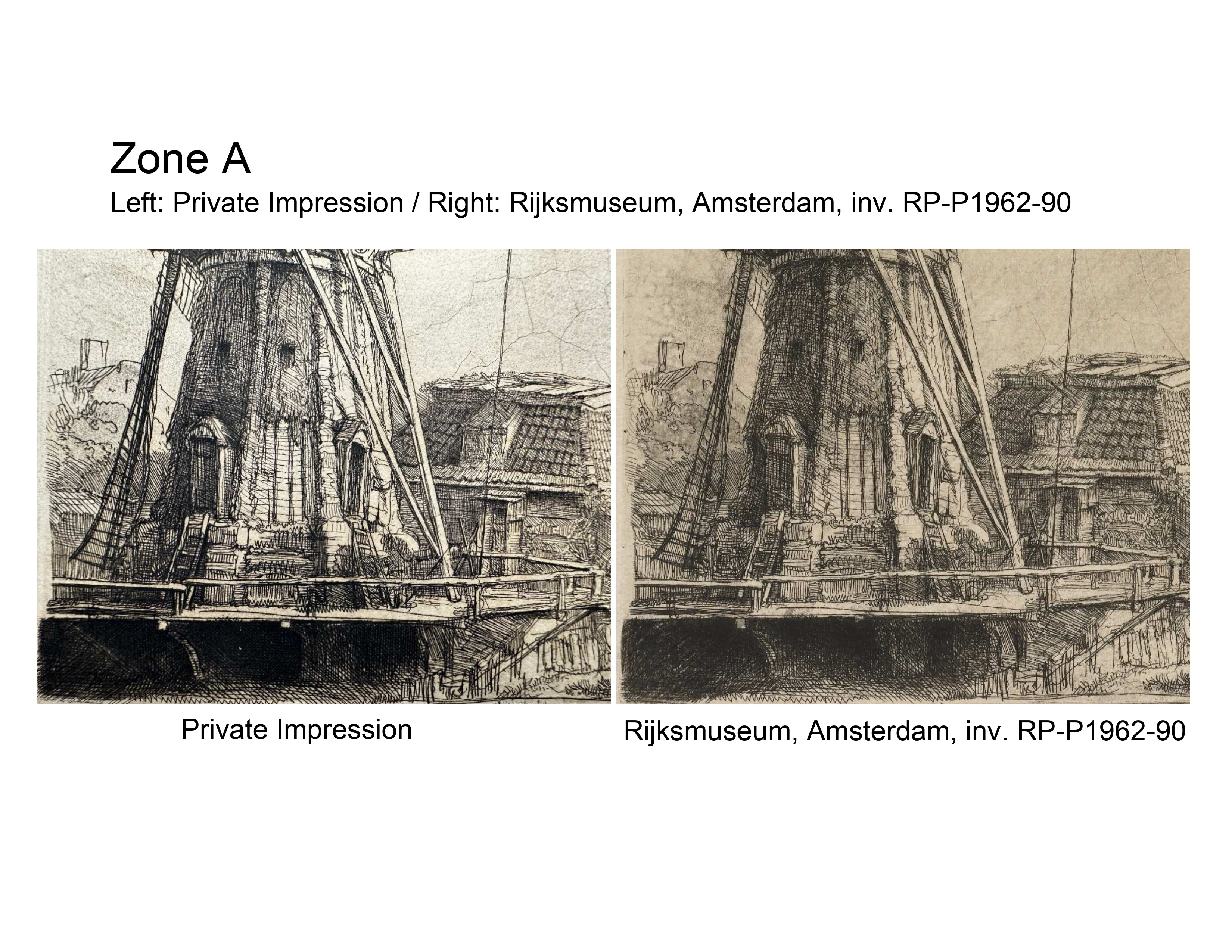

Control Zone Analysis (Zone A)
Zone A (Central Structure): The private impression displays greater definition. The shadow beneath the bridge and the texture of the mill’s wooden structure retain a deeper and more articulated black.

Control Zone Analysis (Zone B)
Zone B (Signature and Date): The inscription “Rembrandt f. 1641” exhibits identical calligraphy in both impressions.

Overlay — Signature and Date
Comparative digital overlay of the signature “Rembrandt f. 1641”, demonstrating identical engraving morphology and confirming execution from the same original matrix.

Overlay — Mill Structure
Structural overlay of the mill architecture, illustrating precise correspondence in compositional geometry and confirming identity of the copper plate.

Provenance and History

The print was transmitted from generation to generation, remaining consistently within the same family. Its state of preservation suggests minimal handling: it was kept for decades in a protected environment, away from direct light, fluctuations in humidity, and the damage often caused by framing. In fact, it is likely that the print has been handled far less over the past one hundred years than during the last three months, when it was meticulously examined under the microscope, with raking light, and through watermark analysis as part of this technical study.

This continuity of private custody—without recorded sales, auction appearances, or dealer interventions—accounts both for the exceptional state of preservation and for the survival of physical features that are often lost in circulating impressions, such as active burr, beveled plate corners, and fully preserved deckle edges.

Provenance therefore supports the attribution not only through lineage, but through material coherence: every aspect of the sheet’s condition aligns with an impression that has remained intact, untrimmed, and undisturbed since the seventeenth century.

Matrix and Technique References

Stijnman, Ad. Engraving and Etching 1400–2000: A History of the Development of Manual Intaglio Printmaking Processes. HES & De Graaf, 2012.
Used in the report:
This work forms the methodological basis for the Microscopic Line Analysis. Stijnman demonstrates that drypoint burr is an ephemeral physical relief. Its presence in the micrographs constitutes scientific evidence that the plate was in a “young” stage of use, consistent with an early phase in the life of the matrix.

Hinterding, Erik. Rembrandt as an Etcher: The Practice of Production and Distribution. Sound & Vision Interactive, 2006.
Used in the report:
Hinterding classifies plate states and documents Rembrandt’s management of print runs. This reference is used to validate that the variations identified in Zone A and Zone B correspond to an early stage in the life of the plate.

Support References (Paper and Watermarks)

WIRE Project (Watermark Identification in Rembrandt’s Etchings). Cornell University.
Specific reference: Record HMP 234985.b.
Used in the report:
Serves as the comparative reference for the PvL.a watermark.

Ash, Nancy & Fletcher, Shelly. Watermarks in Rembrandt’s Etchings. National Gallery of Art, Washington, 1998.
Used in the report:
Provides the standard morphology of Pieter van der Ley (PvL) watermarks. This reference supports the argument that although the paper mill was formally recorded in 1665, molds bearing these initials were already circulating in artisanal use prior to that date.

Institutional Comparative References

Rijksmuseum, Amsterdam. Online Collection Database.
Specific reference: Inventory RP-P-1962-90 (The Mill).
Used in the report:
This institutional impression is used for the digital overlay comparison. The coincidence of engraved lines between the private impression and this international standard demonstrates identity of the original matrix.
